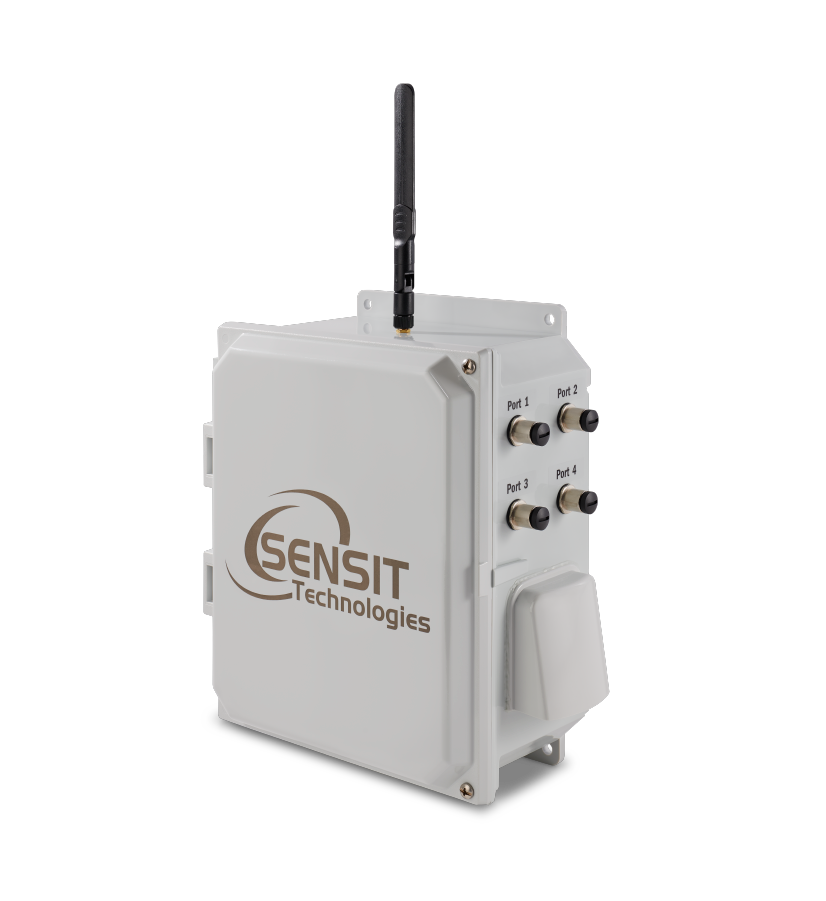

The SENSIT® RAMP is a comprehensive air quality monitoring platform that can easily be deployed at a low cost. In addition, it is capable of monitoring up to five gaseous chemical pollutants, temperature, humidity, particulate matter, and meteorological conditions, making it a highly versatile and valuable tool for monitoring air quality in various settings.

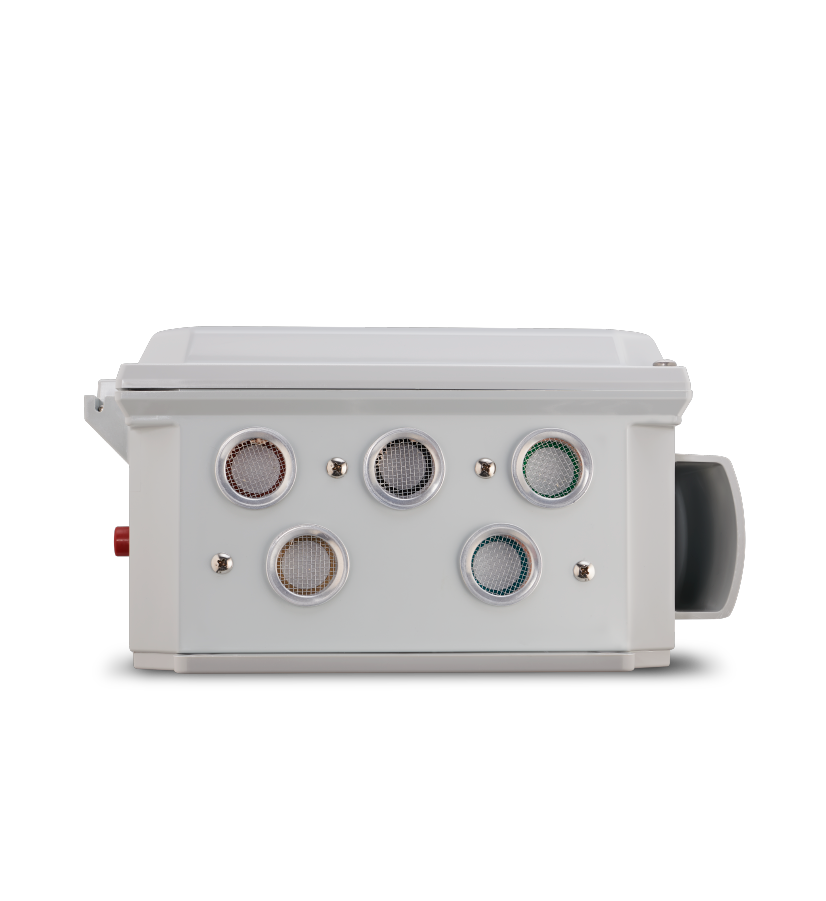

Electrochemical sensors offer PPB, parts per billion, and resolution for CO, NO, NO2 O3, and SO2 gases. An integrated PM2.5 particulate matter sensor measures pollutants in the atmosphere.

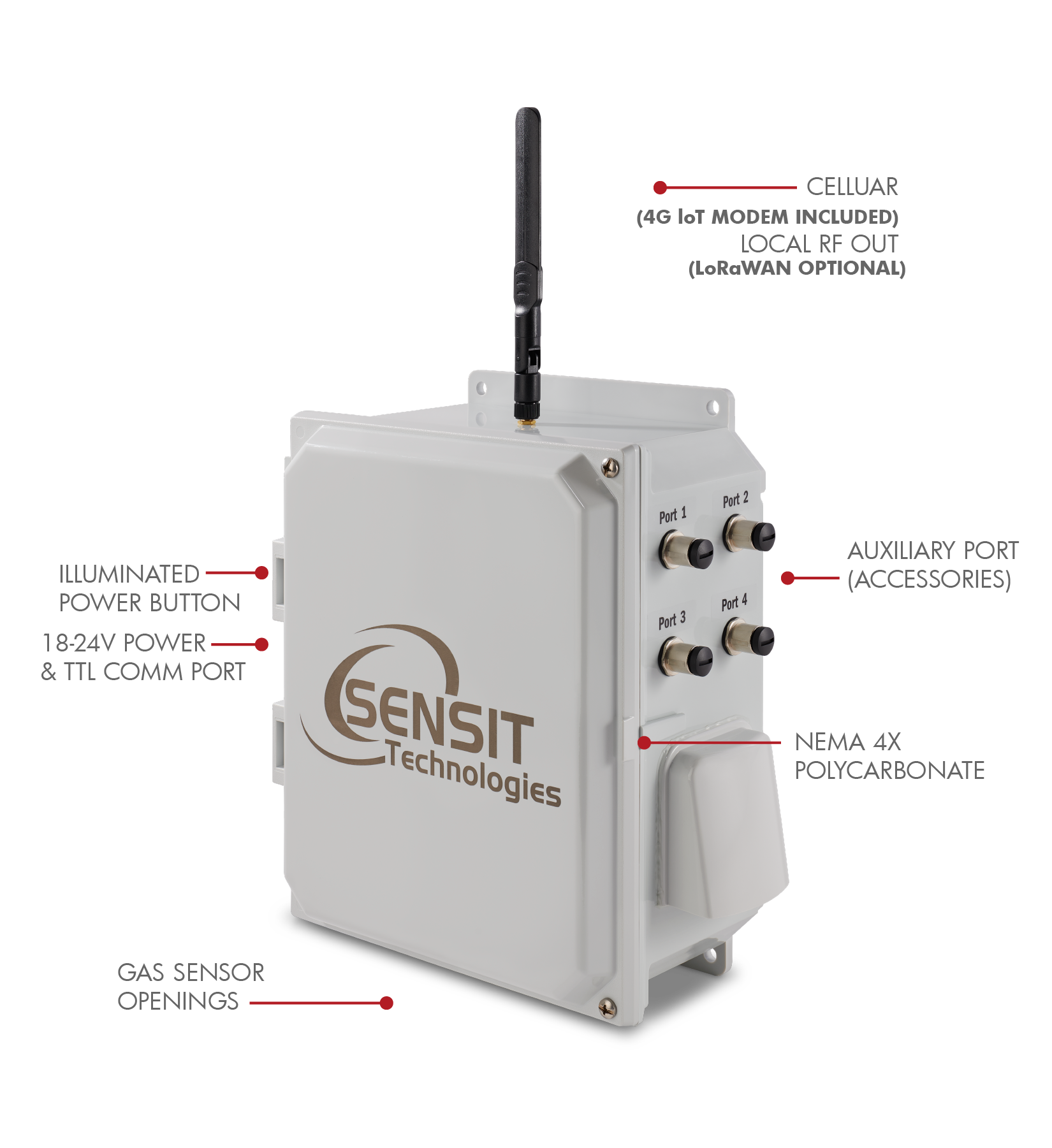

Other features include internal SD storage, optional solar charging, and global cellular integration for remote operation. Additional instrumentation may be integrated via four I/O ports on the side of the unit.
Share:
| Sensors | CO, CO2, NO, NO2, O3, PM2.5, SO2 |
|---|---|
| Size | D x W x H (5” x 10” x 12”) |
| Weight | 7.5 lbs |
| Voltage Requirements | 18V – 24V DC Charging (solo, panel) or other DC Power Source |
| Current Requirements | 1A max current draw when charging |
| Operating Runtime | 3-15 days battery backup |
| Operating Temperature | -20°C to 50°C (-4°F to 122° F) |
| Data Outputs | Digital Wired Output (3.3V TTL – USB), SD Card Data Backup, Wireless (4G Celluar Included) |
